Product Instruction

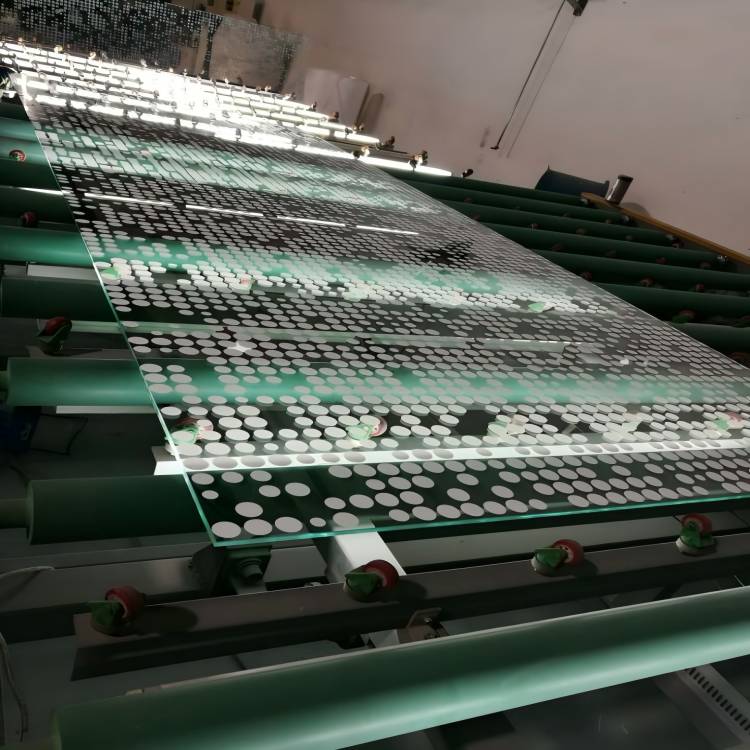

Silk screen printed glass is the ceramic fritted glass which with inorganic ink printed on the glass surface by screen printing on screen plate and roller printing machine,after drying and heat treatment(tempered or toughened) to make the ink permanently sintered on glass surface. It is a safety glass with acid and alkali resistance and it is widely used in the architectural decorative industry,for both residential and commercial settings.

Because of its friendly environmental conservation of ceramic ink material,the glass is free harmful chemicals and toxins.

Because of its versatility advantage of silk screen printing,the glass can be customized with various colors,designs and patterns to meet different design application need.Besides decorative features in homes,silk screen printing can be displayed as brand or logo on glass products in a unique way in business.So there is no limitation to the creativity that applied to the glass surface.

Because of its low maintenance advantage,the glass is resistant to heat,scratches and corrosion.

Sometimes,customers confuse silk screen printed glass(Glass A) with lacquered glass (Glass B),the differences are listed following.

1.Material

Glass A is made by printing process on the basis of glass,the main materials are glass and ink.

Glass B is sprayed on the surface of glass with a special layer of paint after high temperature baking.

2.Technology

Glass A is made by printing process on the basis of glass,the painted patterns and text can be personalized according to customer requirements.

Glass B is painted on the glass surface spraying baking paint,after high temperature baking to achieve patterns and colors by spraying paint.

3.Durability

Glass A have strong anti-corrosion ability,more durable and can maintain a long service life,10-15 years,even in a complex environment.

Glass B's painting layer is easy to fall off and break after wear and scraping.

Products Features

1.The glaze do not fall off and fade

2.Diversity both for color and design

3.Great decoration effect

4.Great shading effect

5.Great privacy effect

Products Specification

Glass Thickness:3-19mm

Silk Screen Color:Clear,Ultra Clear,French Green,Dark Green,Euro Grey,Light Grey,Ford Blue,Dark Blue,Euro Bronze,Dark Bronze,Golden,Pink,Frosted etc.

Minimum Size:400mm H x 400mm W

Maximum Size: 2500mm H x 6000 mm W

Quality Standard:GB11614-2009

GB 15763.2-2005

GB17841-2008

GB/T18915.2-2013

SDYH-ZY-PZ-01(Internal Control Standard )

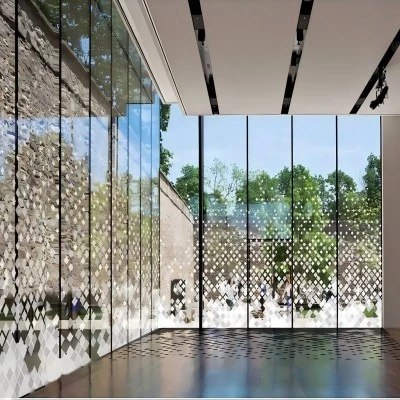

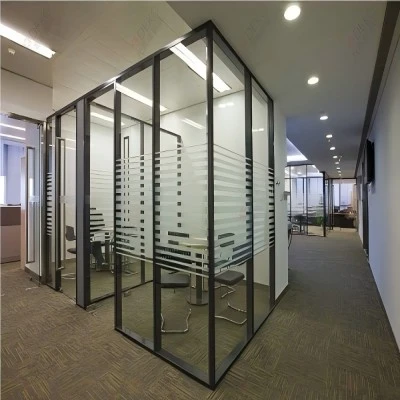

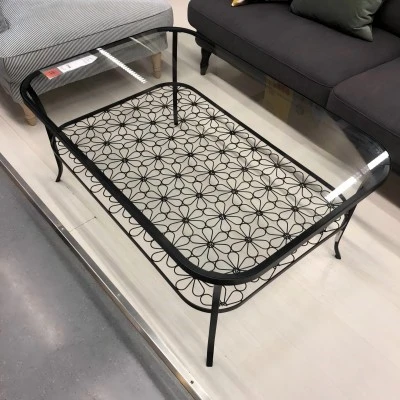

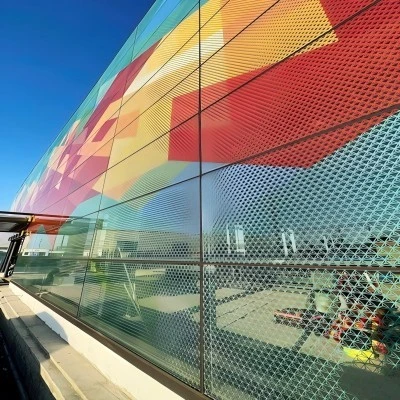

Application
