Great-performance vacuum glass for windows.

Vacuum glass is a simply a larger version of single vacuum glass which glass comprises two panels of glass with an evacuated space(0.15mm-0.3mm) supported by micro pillars between the two glass sheets.

As we know,vacuum glass need micro pillars,vacuum and hermetic seal support,such kind of glass with special and complicated technology.The larger glass size,the the higher technical requirements.The maximum size we can manufacture is 3300X2000mm,it is perfect for applications where large glass panels are required, such as for laboratory, storefronts and commercial buildings.

There are many benefits to using big size vacuum single glass in buildings even in your home or office.

Improved energy efficiency

Such glass help to reduce heat transfer, which can save on heating and cooling costs.

U-value can meet 0.4-0.6W/㎡.k,up to 60% energy cost saving

Sound insulation

Such glass help to reduce noise from outside,with reducing sound above 39 decibels and creating a quieter and more comfortable environment indoors.

Long-lasting durability

Such glass has a longer lifespan than traditional single glass, meaning that it will last longer and require less maintenance over time.The service life expectancy of the glass exceeds 25 years.

Safe

Such glass can be full tempered with higher strength and impact resistance.

Light weight

Single Vacuum glass only 10.15mm Thk. Weight:25kg/m².It reduces the use of materials while extending the service life of hardware.

When choosing great-performance vacuum glass for windows, there are a few factors to consider. Here are some keys to keep in mind.

Size

Make sure the space measurement where need the glass panel to ensure you choose the right size.

Energy efficiency

Look for glass that has a high insulating value to help keep your home or office more comfortable and energy-efficient.

Customization

Consider any customization you may need, such as tinting or frosting, to ensure you get the right glass for your specific needs.The maximum size is 3660X2000mm,then virous sizes can be customized.

Great-performance vacuum glass for windows,can help creating comfortable living environment,reducing carbon emission and contributing to sustainable development.The passive house with vacuum glass window can achieve a higher level of energy efficiency than with traditional double or triple glazing windows.

Products Specification

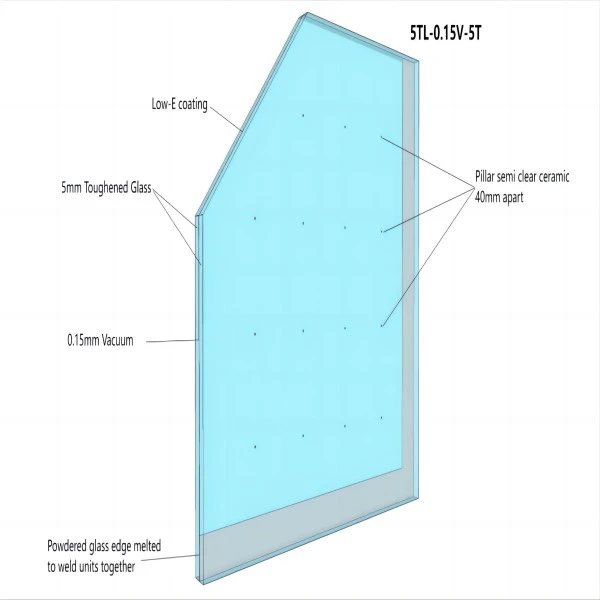

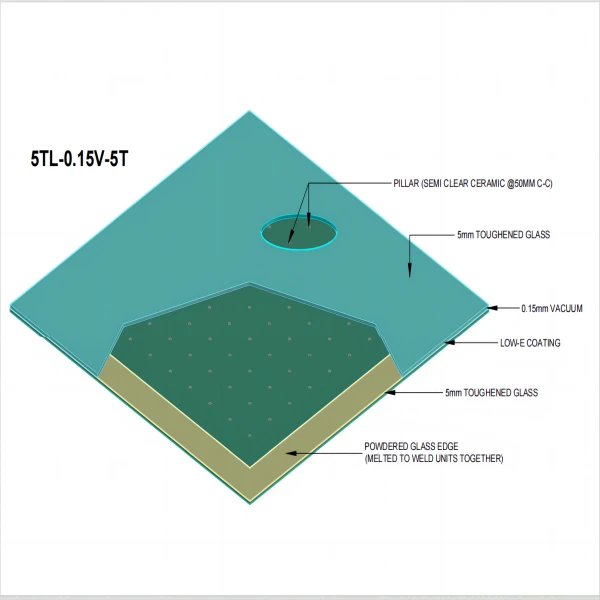

QQ202407191625321 202407151630211

Maximum Size:3660*2000mm

a.5mmT+0.15V+5mmTL Ug=0.55W/㎡.k

b.6mmT+0.15V+6mmTL Ug=0.5W/㎡.k

c.5mm+16A TGI+5mmT+0.15V+5mmTL Ug=0.45W/㎡.k

Products Properties

1.Thermal insulation

value 0.4-0.6W/㎡.k

2.Sound insulation

Rw≥39dB

3.More Thinner more Lighter

Single Vacuum glass only 10.15mm Thk. Weight:25kg/m² ; It reduces the use of materials while extending the service life of hardware. The costs on storage and logistics are also significantly reduced.

4.Super Long life

The service life expectancy of Vacuum glass exceeds 25 years.

5.Tempered and Safe

Vaccum glass is Full-Tempered ,higher strength , impact resistance

6.Window Series

GVG70,GVG80,GVG90
